What is the maximum ink pressure that Ricoh G6 can withstand?
As a well - established supplier of Ricoh G6 print heads, I often get asked about the technical specifications of this remarkable product. One of the most common questions is regarding the maximum ink pressure that the Ricoh G6 can withstand. In this blog, I will delve into this topic, comparing it with other popular print heads in the market and providing you with all the necessary information to make an informed decision for your printing needs.
Understanding the Ricoh G6
The Ricoh G6 is a high - performance print head that has gained significant popularity in the digital printing industry. Its advanced design and technology allow for high - quality, high - speed printing across a wide range of applications, including signage, textile, and packaging. You can find more detailed information about the Ricoh G6 on our website.
The ink pressure in a print head is a crucial factor that affects both the performance and the lifespan of the device. If the ink pressure is too low, it may result in inconsistent ink flow, leading to uneven printing and poor image quality. On the other hand, if the ink pressure is too high, it can cause damage to the print head components, such as the nozzles and the piezoelectric elements.
The Maximum Ink Pressure of Ricoh G6
Ricoh has designed the G6 print head to operate within a specific ink pressure range. The maximum ink pressure that the Ricoh G6 can safely withstand is approximately 20 kPa (kilopascals). This pressure limit is carefully determined based on the internal structure and materials of the print head.
The internal components of the Ricoh G6, such as the piezoelectric actuators and the nozzle plates, are engineered to function optimally under this pressure. Exceeding this limit can lead to several issues. For example, high pressure can cause the nozzles to deform, which may result in misfiring or clogging. Additionally, it can put excessive stress on the piezoelectric elements, reducing their lifespan and potentially leading to permanent damage.
Comparison with Other Print Heads

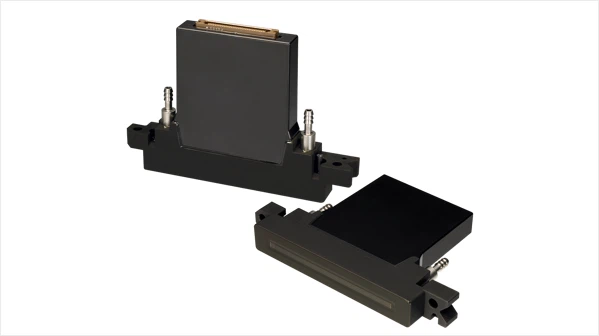

To better understand the significance of the Ricoh G6's maximum ink pressure, let's compare it with other popular print heads in the market, such as the Konica 1024i and the Konica 1024.
The Konica 1024i can typically handle a maximum ink pressure of around 15 kPa. This means that the Ricoh G6 has a relatively higher tolerance for ink pressure, which can be an advantage in applications where a more forceful ink delivery is required. However, it's important to note that the Konica 1024i has its own unique features and advantages, such as high - speed printing capabilities and excellent drop placement accuracy.
The Konica 1024, on the other hand, has a maximum ink pressure limit of approximately 12 kPa. Similar to the Konica 1024i, it is also known for its reliable performance in various printing applications. But again, the Ricoh G6's higher maximum ink pressure gives it an edge in situations where a more robust ink supply system is needed.
Factors Affecting Ink Pressure in a Printing System
Several factors can affect the ink pressure in a printing system. One of the main factors is the ink viscosity. Higher - viscosity inks require more pressure to flow through the print head nozzles. Therefore, when using inks with a high viscosity, it is crucial to ensure that the ink pressure remains within the safe operating range of the Ricoh G6.
The temperature of the ink also plays a role. As the temperature increases, the viscosity of the ink decreases, which can affect the ink pressure. In a printing environment, it is important to maintain a stable temperature to ensure consistent ink flow and pressure.
The design of the ink supply system is another important factor. A well - designed ink supply system can help regulate the ink pressure and ensure that it remains within the desired range. This includes factors such as the size and length of the ink tubes, the type of pumps used, and the presence of pressure regulators.
Maintaining Optimal Ink Pressure for Ricoh G6
To ensure the long - term performance and reliability of the Ricoh G6 print head, it is essential to maintain the ink pressure within the recommended range. Here are some tips on how to achieve this:
- Use a Pressure Regulator: Install a high - quality pressure regulator in your ink supply system. This device can help maintain a stable ink pressure and prevent sudden fluctuations that could damage the print head.
- Monitor Ink Viscosity: Regularly check the viscosity of the ink and adjust the ink pressure accordingly. If the viscosity changes due to factors such as temperature or aging, make the necessary adjustments to keep the pressure within the safe range.
- Keep the Printing Environment Stable: Maintain a consistent temperature and humidity level in the printing area. This can help ensure that the ink properties remain stable and that the ink pressure is easier to control.
- Regular Maintenance: Perform regular maintenance on your printing system, including cleaning the ink filters and checking the integrity of the ink tubes. A clean and well - maintained system is more likely to maintain a stable ink pressure.
Conclusion
In conclusion, the maximum ink pressure that the Ricoh G6 can withstand is approximately 20 kPa. This specification is based on the print head's internal design and materials, and exceeding this limit can lead to performance issues and potential damage. When compared to other popular print heads like the Konica 1024i and Konica 1024, the Ricoh G6 offers a relatively higher tolerance for ink pressure, which can be beneficial in certain applications.
By understanding the factors that affect ink pressure and taking the necessary steps to maintain optimal pressure levels, you can ensure the long - term performance and reliability of your Ricoh G6 print head.
If you are in the market for a high - quality print head or need more information about the Ricoh G6, we are here to help. Our team of experts can provide you with detailed technical support and guidance to help you choose the right product for your specific printing needs. We invite you to contact us for procurement discussions and take advantage of our extensive experience and knowledge in the printing industry.
References
- Ricoh Product Manuals
- Industry research on inkjet print head technology
- Technical papers on ink pressure management in printing systems
